Protection-Drainage-Insulation

VS.

TUFF-N-Dri Barrier Board

Drainage Flow Rates

Ability to Drain Water Based on Hydraulic Transmissivity Test method ASTM D-4716



Green JacketTM

Tuff-N-Dri

Warm-N-Dri

3/4" Board

85 gphilf

50 gphilf

70 gphilf

1 3/16" Board

135 gphilf

80 gphilf

110 gphilf

2 3/8" Board

270 gphilf

160 gphilf

210 gphilf


Summary of Drainage Rate Comparison

Test numbers reveal a minimum of 20% more water flow rather through Green JacketTM over Warm&Dri foundation boardTM. Greater drainage rates means more water reaches the footer when it is needed, reducing the impact of water pressure on the wall and reducing the possibility of leaks or structural damage.

R-Values

ASTM C518 Thermal Transmission Test Method



Green JacketTM

Tuff-N-Dri

Warm-N-Dri

3/4" Board

R-3

R-3

R-3

1 3/16" Board

R-5

R-5

R-5

2 3/8" Board

R-10

R-10

R-10

Characteristics

Green JacketTM (Polyester Synthetic Fibers)

Fiberglass Products

• Strong tensile strength

• Resistant to most chemicals

• Resilient-flexible-elastic (bends around walls)

• Mildew resistant

• Abrasion resistant

• No loose fibers - safe to install

• Not itchy

• UV resistant

• Strong tensile strength

• Resistant to most chemicals

• Non-resilient and non-flexible (non-bending)

• Organic material susceptible to mildews/molds

• Low abraision resistance

• Loose fibers - potential respiratory hazard

• Itchy

• Non-UV resistant

Protection Ability-Durability

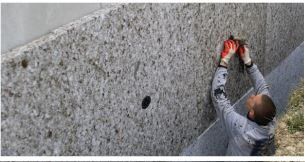

The gravel test video demonstrates the durability of Green JacketTM over the fiberglass board.





Benefits of Green Jacket

      • Stands up to gravel shooters

      • Reduces damage to waterproofing membrane

      • Adds Insulation to foundation

      • Drains water to the footer drains


                          Green Jacket Spec Sheet




Delta Drain; 8’ x 65.5’ Protection –Drainage Product!

Delta Drain is a multilayer geocomposite combining high density polyethylene core with a geotextile, bonded to the core for lasting durability. Delta Drain creates an essential path for the vertical and horizontal drainage of soil moisture and filtering of soil particles while offering hydrostatic pressure relief. See spec sheet for more info.

Each kit has: 200 nails, 75 fasteners, 2 tubes of caulk, 13 termination bars, 1 kit covers 1 roll.




Dow Perimate:

 In 1995 HouseGuard was the first manufacturer to combine the Dow Perimate Board R-5 and R-10 with the TruDry™ waterproofing membrane making it the HouseGuard Waterproofing System.

 When looking for a product that offers a true R value in wet conditions, protection against backfill and drainage, the Dow Perimate offers two great products, R-5(1”) and the R-10 (2”). .

Drainage Grooves-The STYROFOAM insulation board’s drainage grooves are specifically designed to drain water away from the foundation walls, channeling ground water down to the drain tile. The extruded polystyrene of 25 psi protects the membrane and becomes a front line defense against hydrostatic pressure.

For application on interior basement insulation:

Dow Styrofoam Exposed and Dow Styrofoam Exposed Application Clarification
